[Ncep.list.idp.mrms.users] Chicago radar data not being used in MRMS (since at least 00z)?

Tue Mar 27 13:12:33 UTC 2018

Hi Ray,

Here is the most recent (3 pm yesterday) FTM that WFO LOT sent.

NOUS63 KLOT 261859
FTMLOT
Message Date: Mar 26 2018 19:00:30

KLOT IS BACK ONLINE. TOUBLESHOOTING HAS IDENTIFIED A FAILED AZ
ROTARY JOINT. A REPLACEMENT PART HAS BEEN ORDERED, BUT IS NOT
CURRENTLY AVAILABLE. KLOT WILL R EMAIN ONLINE, BUT DUAL POL
PRODUCTS SHOULD NOT BE USED.

It appears something within MRMS is blocking out nearly all
data from KLOT, but not allowing surrounding radars to fill
in.  I noticed the Q3 Gauge Only products are similarly
rejecting/blanking out the data under the KLOT umbrella.

Jeff
___________________________
Jeff Waldstreicher
NOAA/NWS Eastern Region HQ
Scientific Services Division
Bohemia, NY
631-244-0131
jeff.waldstreicher at noaa.gov

On 3/27/2018 8:41 AM, Ray Davis - NOAA Federal wrote:
> Oh -- ok.  Thanks for the insight Zac!
>
> Ray
>
>
> */___________________ /**//**/
> /*
> *Ray Davis | **Hydrologist
> *
> */
> /*/NOAA/National Weather Service/
> /Ohio River Forecast Center
> /
> /1901 S. State Rt. 134
> /
> /Wilmington, OH 45177/
> /Tel: (937) 383-0528
> E-mail: Raymond.Davis at noaa.gov <mailto:raymond.davis at noaa.gov>
> /
> *The contents of this message are mine personally and do not
> necessarily reflect any position of NOAA.*
>
> On Tue, Mar 27, 2018 at 7:52 AM, <zac at weatherwary.com
> <mailto:zac at weatherwary.com>> wrote:
>
>     I phrased that poorly. The bad dual pol data is causing
>     MRMS to treat many to all of the radials from KLOT as
>     non-meteorological data which it then filters out. This
>     filtering takes priority over the data from the
>     surrounding radars given the distance to radar.
>
>     Zac
>
>     On Mar 27, 2018, at 6:46 AM, Ray Davis - NOAA Federal
>     <raymond.davis at noaa.gov <mailto:raymond.davis at noaa.gov>>
>     wrote:
>
>>     It should be using the surrounding radars to fill in
>>     that area, but it seems to be rejecting KLOT's data, and
>>     setting the area to clear sky (or something like that.)
>>
>>
>>     */___________________ /**//**/
>>     /*
>>     *Ray Davis | **Hydrologist
>>     *
>>     */
>>     /*/NOAA/National Weather Service/
>>     /Ohio River Forecast Center
>>     /
>>     /1901 S. State Rt. 134
>>     <https://maps.google.com/?q=1901+S.+State+Rt.+134+Wilmington,+OH+45177&entry=gmail&source=g>
>>     /
>>     /Wilmington, OH 45177
>>     <https://maps.google.com/?q=1901+S.+State+Rt.+134+Wilmington,+OH+45177&entry=gmail&source=g>/
>>     /Tel: (937) 383-0528 <tel:%28937%29%20383-0528>
>>     E-mail: Raymond.Davis at noaa.gov
>>     <mailto:raymond.davis at noaa.gov>
>>     /
>>     *The contents of this message are mine personally and do
>>     not necessarily reflect any position of NOAA.*
>>
>>     On Tue, Mar 27, 2018 at 7:29 AM, <zac at weatherwary.com
>>     <mailto:zac at weatherwary.com>> wrote:
>>
>>         KLOT seems to be having some serious problems with
>>         its dual pol products and so MRMS isn’t ingesting it
>>         for that reason.
>>
>>         Zac
>>
>>         On Mar 27, 2018, at 5:37 AM, Ray Davis - NOAA
>>         Federal <raymond.davis at noaa.gov
>>         <mailto:raymond.davis at noaa.gov>> wrote:
>>
>>>         Hi there,

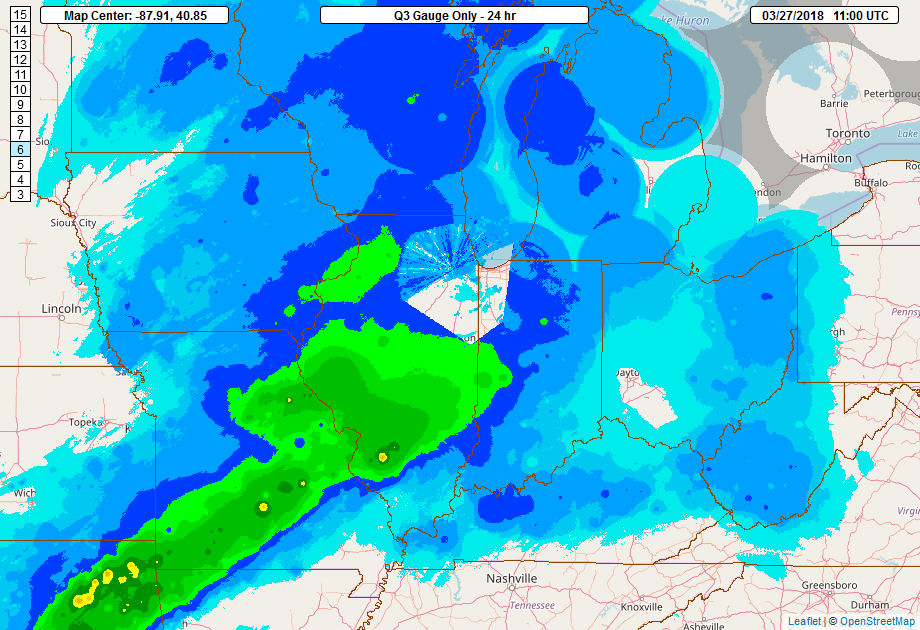

>>>         Is anyone else seeing Really Bad data in MRMS
>>>         coming from the Chicago radar?  Maybe this is a
>>>         residual problem from yesterday's network outage?
>>>
>>>         <2018_0327_10z.gif>
>>>
>>>         Thanks,
>>>
>>>         Ray
>>>         */___________________ /**//**/
>>>         /*
>>>         *Ray Davis | **Hydrologist
>>>         *
>>>         */
>>>         /*/NOAA/National Weather Service/
>>>         /Ohio River Forecast Center
>>>         /
>>>         /1901 S. State Rt. 134
>>>         <https://maps.google.com/?q=1901+S.+State+Rt.+134+Wilmington,+OH+45177&entry=gmail&source=g>
>>>         /
>>>         /Wilmington, OH 45177
>>>         <https://maps.google.com/?q=1901+S.+State+Rt.+134+Wilmington,+OH+45177&entry=gmail&source=g>/
>>>         /Tel: (937) 383-0528 <tel:%28937%29%20383-0528>
>>>         E-mail: Raymond.Davis at noaa.gov
>>>         <mailto:raymond.davis at noaa.gov>
>>>         /
>>>         *The contents of this message are mine personally
>>>         and do not necessarily reflect any position of NOAA.*
>>>         _______________________________________________
>>>         Ncep.list.idp.mrms.users mailing list
>>>         Ncep.list.idp.mrms.users at lstsrv.ncep.noaa.gov
>>>         <mailto:Ncep.list.idp.mrms.users at lstsrv.ncep.noaa.gov>
>>>         https://www.lstsrv.ncep.noaa.gov/mailman/listinfo/ncep.list.idp.mrms.users
>>>         <https://www.lstsrv.ncep.noaa.gov/mailman/listinfo/ncep.list.idp.mrms.users>
>>
>>
>
>
>
> _______________________________________________
> Ncep.list.idp.mrms.users mailing list
> Ncep.list.idp.mrms.users at lstsrv.ncep.noaa.gov
> https://www.lstsrv.ncep.noaa.gov/mailman/listinfo/ncep.list.idp.mrms.users
